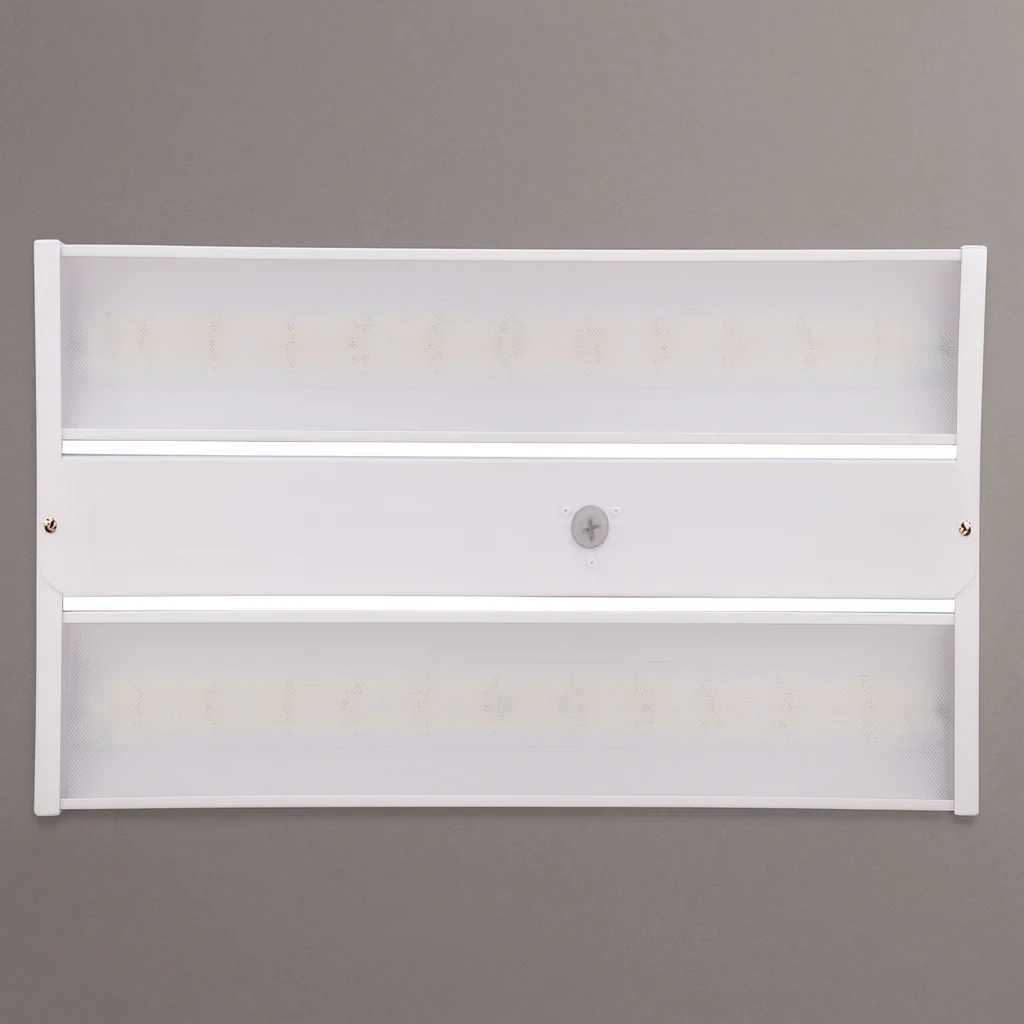

LED Linear High Bays 09 Series
The LED Linear High Bays 09 Series offers powerful, efficient lighting in a low-profile design ideal for warehouses, gyms, and commercial ceilings. Available in 165W, 220W, and 300W adjustable models, it delivers up to 42,000 lumens with 0–10V dimming and CCT options of 4000K or 5000K. Each unit includes a sensor base, supports AC120–277V input, and is housed in a sleek white steel or aluminum body. UL listed and DLC Premium certified for performance and reliability.

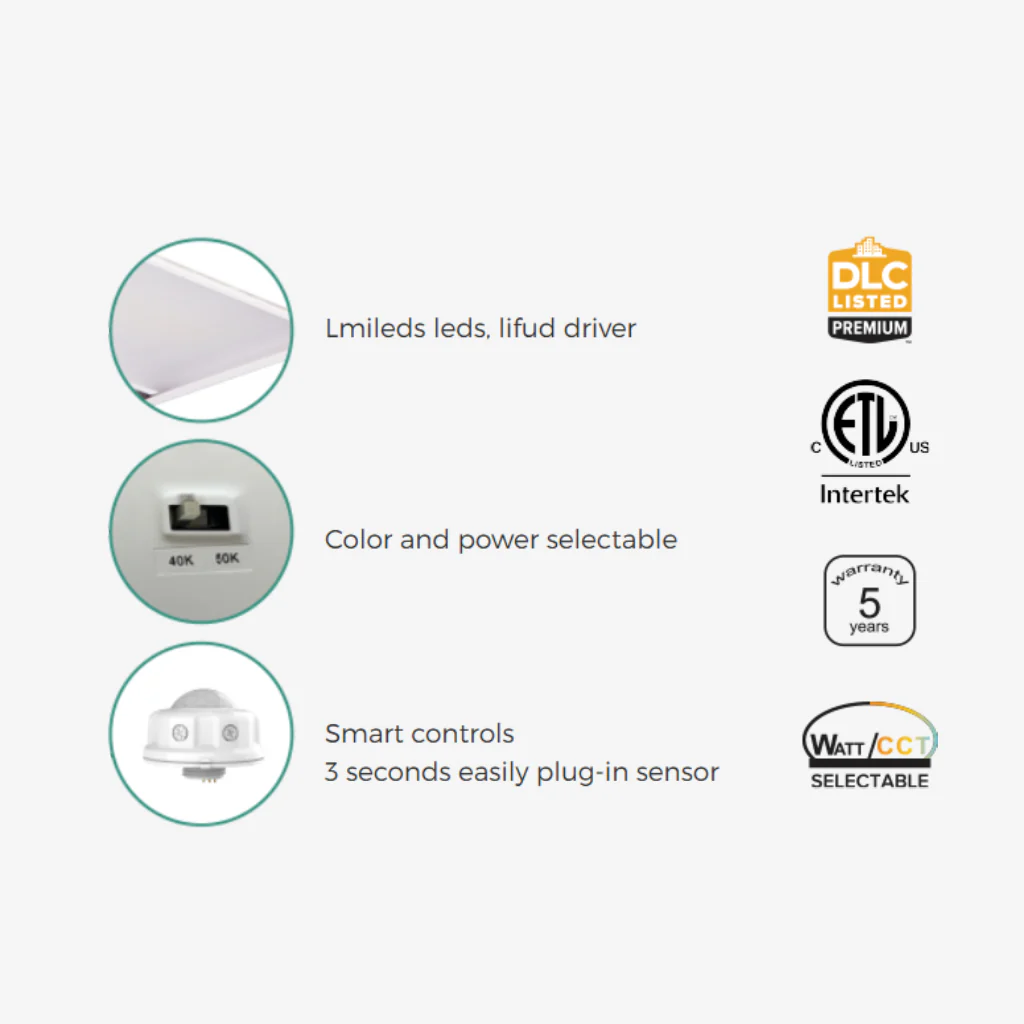

- Lmileds leds, lifud driver
- Color and power selectable
- Smart controls
- 3 seconds easily plug-in sensor
Measurements
• 165W Model (Sensor Base): 25.9" L × 12.6" W × 2.76" H – 7.72 lbs
• 220W Model (Sensor Base): 25.98" L × 14.96" W × 2.76" H – 9.26 lbs
• 300W Model (Sensor Base): 25.98" L × 14.96" W × 2.76" H – 9.26 lbs
Materials
• Housing: Not specified (standard steel/aluminum body typical for high bays)
• Finish: White
Wire
• Voltage: AC120–277V
• Dimming: 0–10V Dimmable
Specs
• Input Watts:
• 165W Model: 130W / 150W / 165W adjustable
• 220W Model: 180W / 200W / 220W adjustable
• 300W Model: 255W / 275W / 300W adjustable
• Lumens:
• 165W Model: up to 23,100lm
• 220W Model: up to 30,800lm
• 300W Model: up to 42,000lm
• CCT: 4000K | 5000K
• DLC Premium | 140 lm/W
• UL Certified
- Shipping: We deliver within 4-7 business days. Shipping is free for US and Canada.
- Returns: You can request a return for this item within 30 days of delivery.
- Payment: We accept all major credit cards, including PayPal, Apple Pay, Google Pay, and Facebook Pay.
-
Have a question?
Email: [email protected]
Phone: +1-(800) 604-7271
Original: $145.26
-70%$145.26
$43.58Product Information
